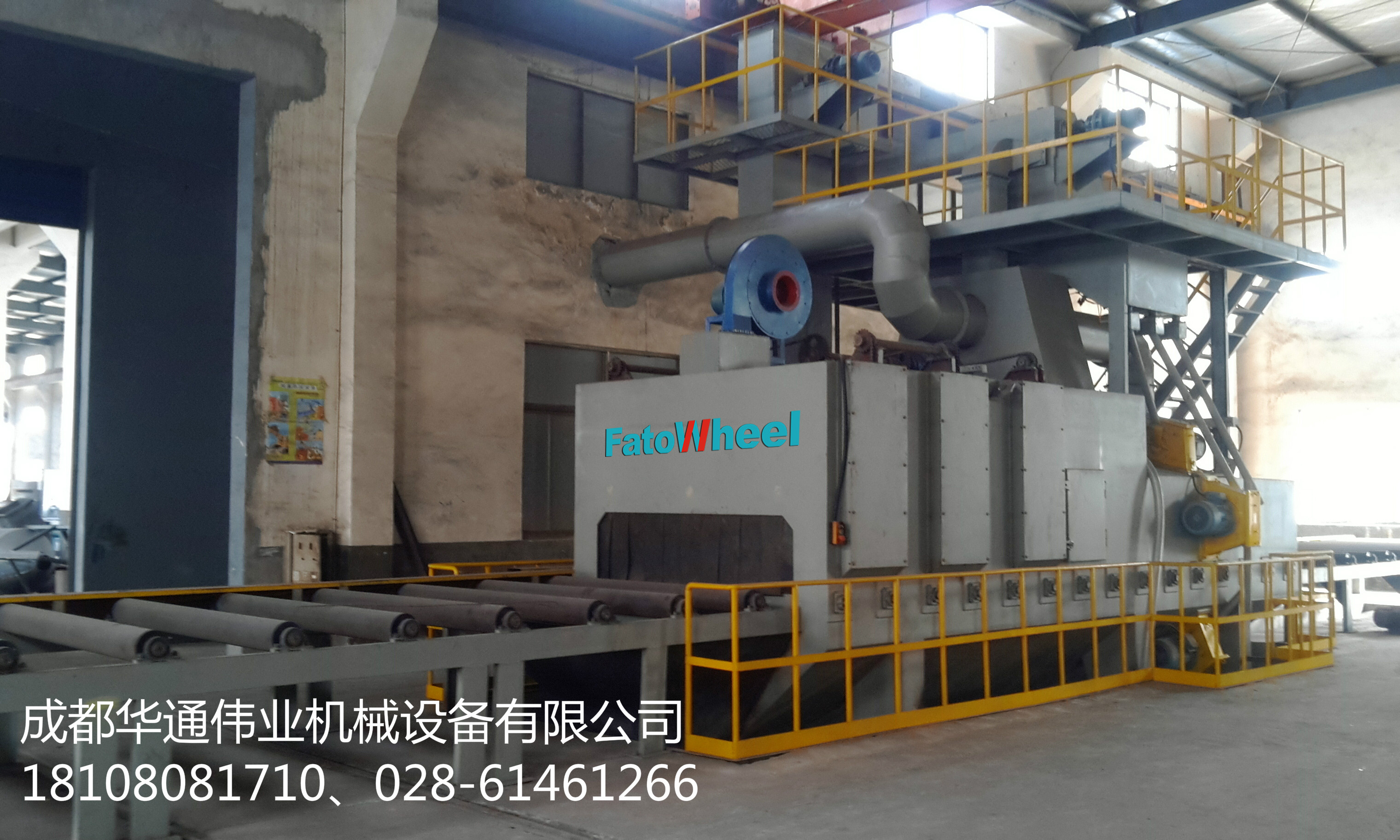

吸取国内外同类产品优点而设计的，除锈工部主机（抛丸清理）采用了高效抛丸器，满幕帘式丸砂分离器，清扫工部采用特制高强度尼滚刷和高压风机二级清扫装置，预热和烘干工部采用多种加热方式，喷漆工部采用高压无气喷涂方式，该成套设备采用PLC控制（控制方式可供选择）。
主要用于钢板和各类型钢的表面处理（指预热、除锈、喷漆、烘干），亦可用于金属构件的表面抛丸清理和强化。
Draw domestic and foreign similar products design and manufacturing advantages,rust and Industry hosts(blast cleaning) using a highly efficient blast wheel,full curtain pill sand separator.cleaning and industry with a special high-strength nylon brush and high pressure air secondary cleaning device .warm and dry using a variety of heating methods and industry,painting and industry by way of high-pressure airless spray.The equipment uses PLC machine control and other control methods to choose from.
Mainly used for various types of steel plates and surface treatment (ie warm,rust removal,painting,drying),can be used for blast cleaning the surface of metal structures and strengthening.
型号 FATO1500 FATO2000 FATO2500 FATO3000 FATO3500 FATO4000 FATO4500 FATO5200 FATO6000
清理尺寸mm
(宽X高X长) 1500×300×12000 2000×300×12000 2500×300×12000 3000×350×12000 3500×350×12000 4000×350×12000 4500×350×12000 5200×350×12000 6000×350×12000
抛丸器数量
（功率） 4台×14KW 4台×15KW 6台× 15KW 6台×22KW 8台× 30KW 8台×30KW 8台×30KW 10台×37KW 12台×45KW
|
